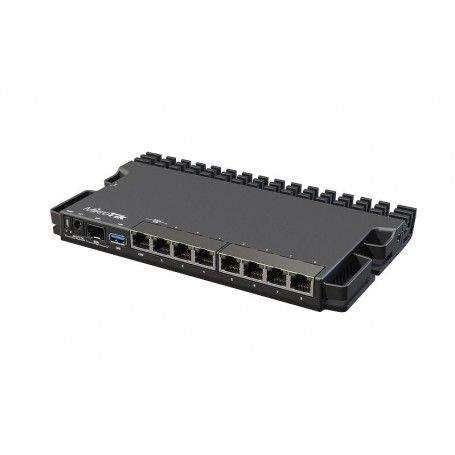

Mikrotik RB5009UG+S+IN router
A powerful and compact router for all types of network environments
Brochure: RB5009UG+S+IN
Notify me when in stock
Drop your email and we'll let you know the moment it's back.
This device features seven Gigabit Ethernet ports, plus an eight 2.5Gbps Gigabit Ethernet port; there is also a 10G SFP+ cage for greater bandwidth requirements.
All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU.
Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink !
The device comes with 1GB of DDR4 RAM and 1GB NAND storage.
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin (telecom) terminal on the side
Lastly, with a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space !
- CPU
- 88F7040
- Cores
- 4
- CPU Frequency
- 350-1400 (auto) MHz
- CPU Architecture
- ARM 64bit
- RAM
- 1 GB
- OS
- RouterOS v7
- RouterOS License
- 5
- Storage
- 1 GB
- Ethernet Combo ports
- 0
- 10/100/1000 Ethernet ports
- 7
- 2.5G Ethernet ports
- 1
- SFP+ ports
- 1
- USB ports
- 1
- USB slot type
- USB 3.0 type A
- SIM slots
- 0
- DC inputs
- 3
- DC input Voltage
- 24-57 V
- PoE in
- 802.3af/at
- PoE-in input Voltage
- 24-57 V
- Max power consumption
- 14 W / 25 W
