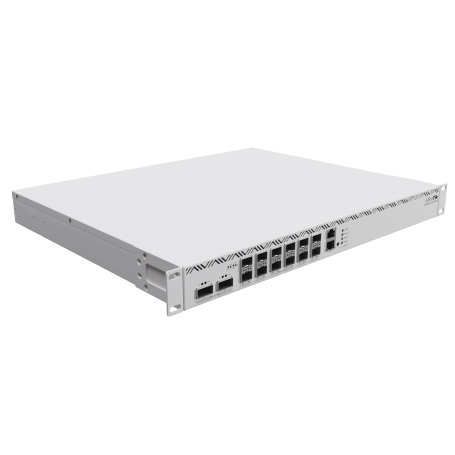

Mikrotik CCR2216-1G-12XS-2XQ router
Unleash the power of 100 Gigabit networking with L3 Hardware Offloading
This is the perfect drop-in upgrade for CCR1072 users: you can continue to use your SFP modules and PSU’s
Brochure: CCR2216-1G-12XS-2XQ
Notify me when in stock
Drop your email and we'll let you know the moment it's back.
Start your 100 Gigabit journey with Mikrotik's new flagship product: the Cloud Core Router 2216!
Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading!
While the CCR2116 features a switch-chip with four 10G CPU connection lines, the CCR2216 features four 25G lines

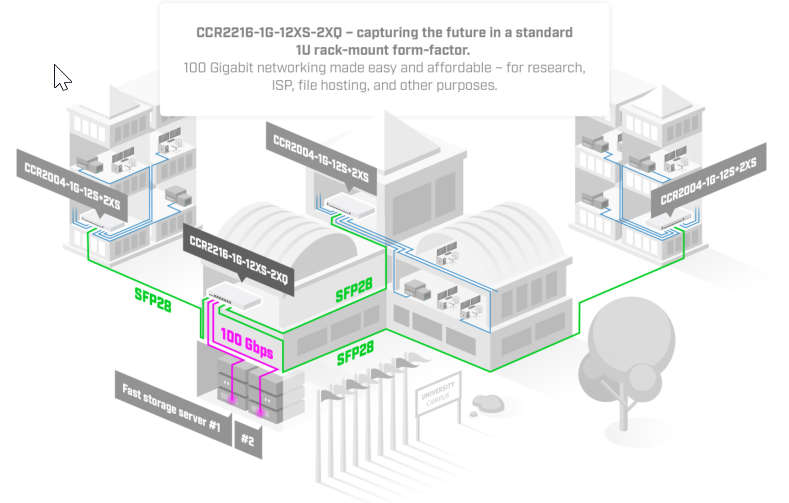

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage.
There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
- CPU
- AL73400
- Cores
- 16
- CPU Frequency
- 2000 MHz
- CPU Architecture
- ARM 64bit
- RAM
- 16 GB
- OS
- RouterOS v7
- RouterOS License
- 6
- Storage
- 128 MB
- Ethernet Combo ports
- 0
- 10/100/1000 Ethernet ports
- 1
- USB ports
- 0
- SIM slots
- 0
- DC inputs
- 0
- Max power consumption
- 80 W / 128 W
